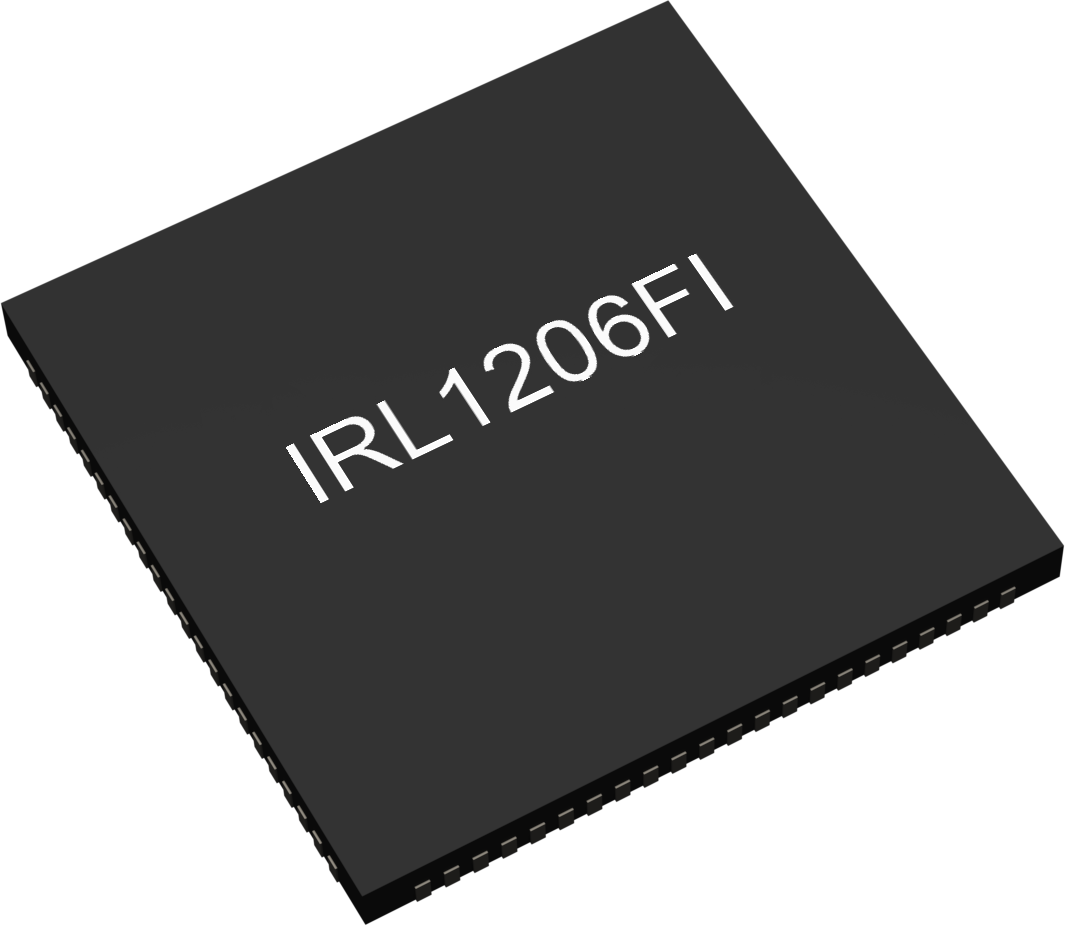

IRL1206FI

Product details

CPU RISC-V архитектура BM-310S0

Frequency (MHz) 50

Performance 3.70 CoreMark/MHz (TCM), 2.15 CoreMark/MHz (Flash)

Flash memory (KByte) 512 (main) + 2x8 (info)

RAM (KByte) 112

ADC type 24-bit ΔΣ ADC (7 independent channels with PGC), 10-bit SAR ADC (3 channels + thermosensor)

Features DMA, Timers (4), WDT (2), PVD, RTC and Battery domain

UART 4

SSP 3

Security Suppressor grid, Random generator, CRC

Operating temperature (°C) −50 to 85

Communication interface I2C (controller) — 1, SSP, UART, ISO7816

Package LQFP

Pins 48

Size (mm) 7 × 7

STM32G0 series microcontroller based on the Arm Cortex-M0+ core. Designed for cost-sensitive applications requiring robust security, low power consumption, and flexible connectivity options.

Technical documentation

Type Title Date

Data sheet MSPM0G511x Mixed-Signal Microcontrollers With USB 2.0-FS Interface datasheet (Rev. A) PDF 19 Dec 2025

Errata MSPM0G5187, MSPM0G511x Mixed-Signal Microcontrollers Errata PDF 11 Aug 2025

BSDL MSPM0 G-Series 80-MHz Microcontrollers Technical Reference Manual (Rev. D) PDF 20 Mar 2026

User guides and Application notes MSPM0 ADC Noise Analysis and Application (Rev. A) PDF 14 Nov 2025

Design & development

Hardware development

Evaluation board IRL1206FI - IRL1206FI EVB is a small , complete board based on the IRL1206FI MCU featuring a 32-bit RISC-V core running at 48 MHz.

Software development

IRL1206SPL

DOWNLOAD

IRL1206_Bootloader_v1.1.0

DOWNLOAD

Irl-openocd-0.12.0-1-linux-arm64.tar.gz

DOWNLOAD

irl-openocd-0.12.0-1-linux-x64.tar.gz

DOWNLOAD

irl-openocd-0.12.0-1-win32-x64.zip

DOWNLOAD

Evaluation board IRL1206FI - IRL1206FI EVB is a small , complete board based on the IRL1206FI MCU featuring a 32-bit RISC-V core running at 48 MHz.
