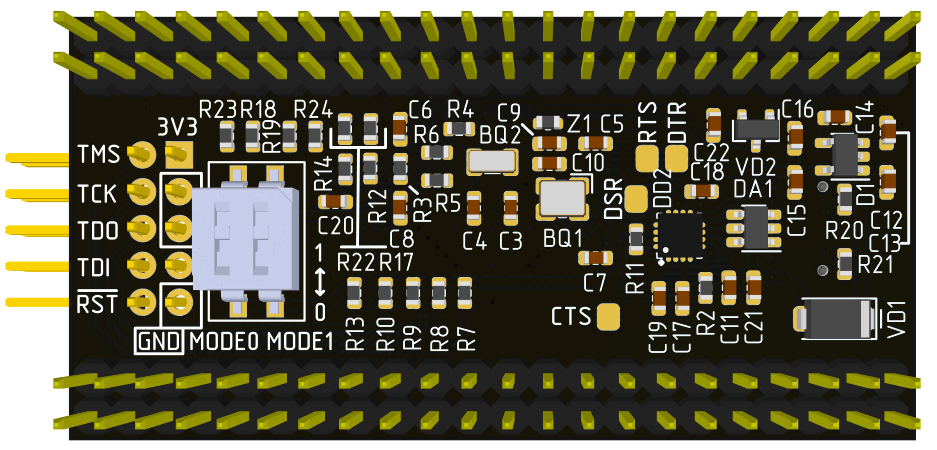

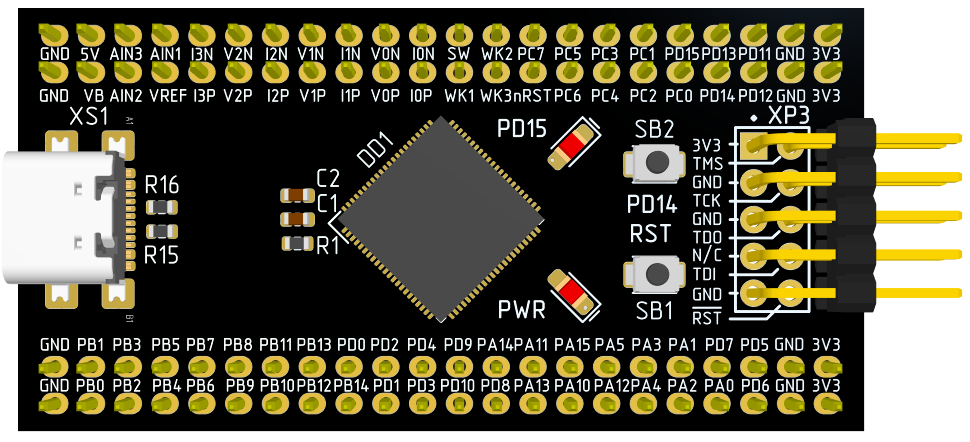

Evaluation board IRL1206FI

IRL1206FI EVB is a small , complete board based on the IRL1206FI MCU featuring a 32-bit RISC-V core running at 48 MHz.

Debugging interface JTAG:

• Pins PA[9:6].

Buttons, switches:

• SB1: reset button "RST";
• SB2: user button "PD14";
• «MODE0, MODE1»: Selecting boot and debug modes.

LED:

• Power LED "PWR";
• User LED "PD15”.

External oscillators:

• BQ1: 8 МГц (HSE);
• BQ2: 32,768 кГц (LSE).

Connectors:

• XP3: JTAG (for debugging, not installed);
• XP8: USB Type-C for power supply, for programming).

Other components:

• DD2: converter USB-UART СH343P, for programming via UART (PB[0]: TX, PB[1]: RX);
• D1: LDO:
  Package: SOT-23-5;
  Vin: 3,6-5,5 V;
  Vout: 3,3 V, 300 mA.

Power supply options:

• Supply via USB Type-C (5 V);
• Supply 3,3 V to any 3V3 pin;
• Supply 5 V to any 5V.

Dimensions: 59×30×8 mm

Programming and debugging tools:

Programmers such as J-Link, IAR I-jet etc. In case of use IAR I-jet can be used IDE IAR Embedded Workbench for RISC-V, in any other case can be used IDE Eclipse (via OpenOCD).

Package include: Evaluation Board, PLD-44 - 2 pc., PLD-10R - 1 pc. – in antistatic zip-lock.
