Evaluation-board-IRL3401FI

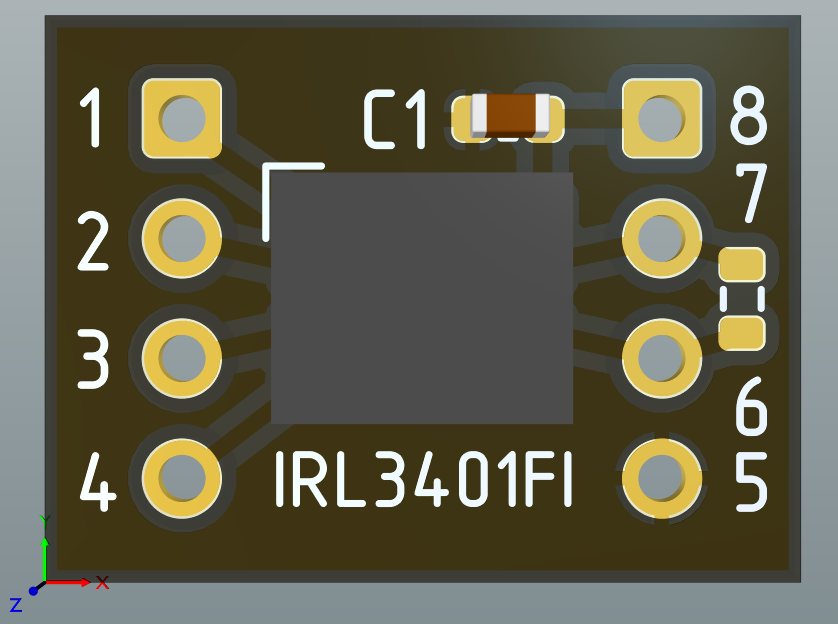

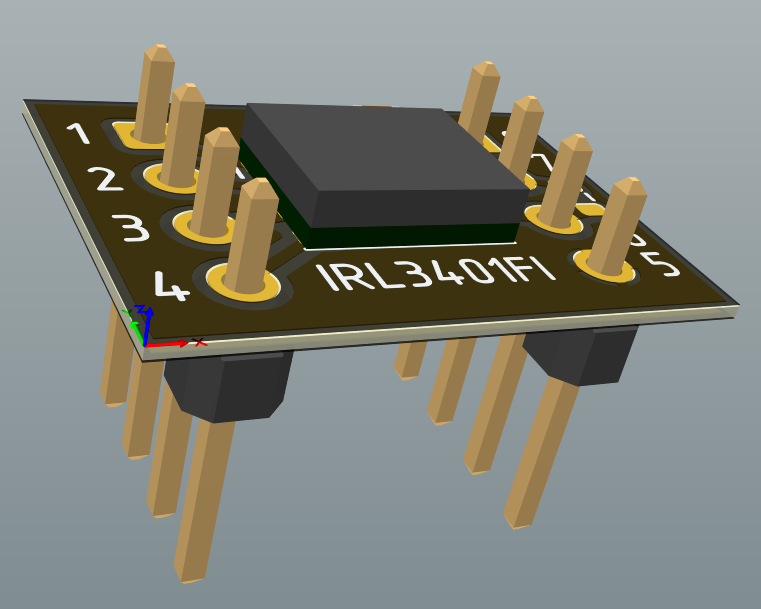

IRL3401FI dip adapter board is a small circuit board that lets you convert a tiny surface-mount DFN8 chip into a large and convinient DIP with 10.16 row spacing, making it easy to use on breadboards or regular sockets.

Breadboard Friendly:

• Uses standard 2.54mm (0.1 inch) pin spacing. Solder standard 2.54mm male header pins (included) into the outer holes of the adapter, then insert the board into a breadboard, IC socket, or prototype board or use Dupont wires.

Main features:

• Data rate up to 30 Mbp/s;
• Bus Common-Mode Range –7 V to +12 V;
• Thermal Shutdown Protection;
• Short Circuit Protection;
• Supply voltage: 3 - 5,5 V;
• Build in 100nF decoupling capacitor (C1);
• Current consumption: less than 1.8 mA.

Footprint to install one 120Ω resistor (terminationg resistor or RT) if used as the very first device or the very last device on the bus (End Nodes).

Dimensions: 16×12 mm

Package includes: Adapter board, PLS-4 - 2 pc., – in antistatic zip-lock.
